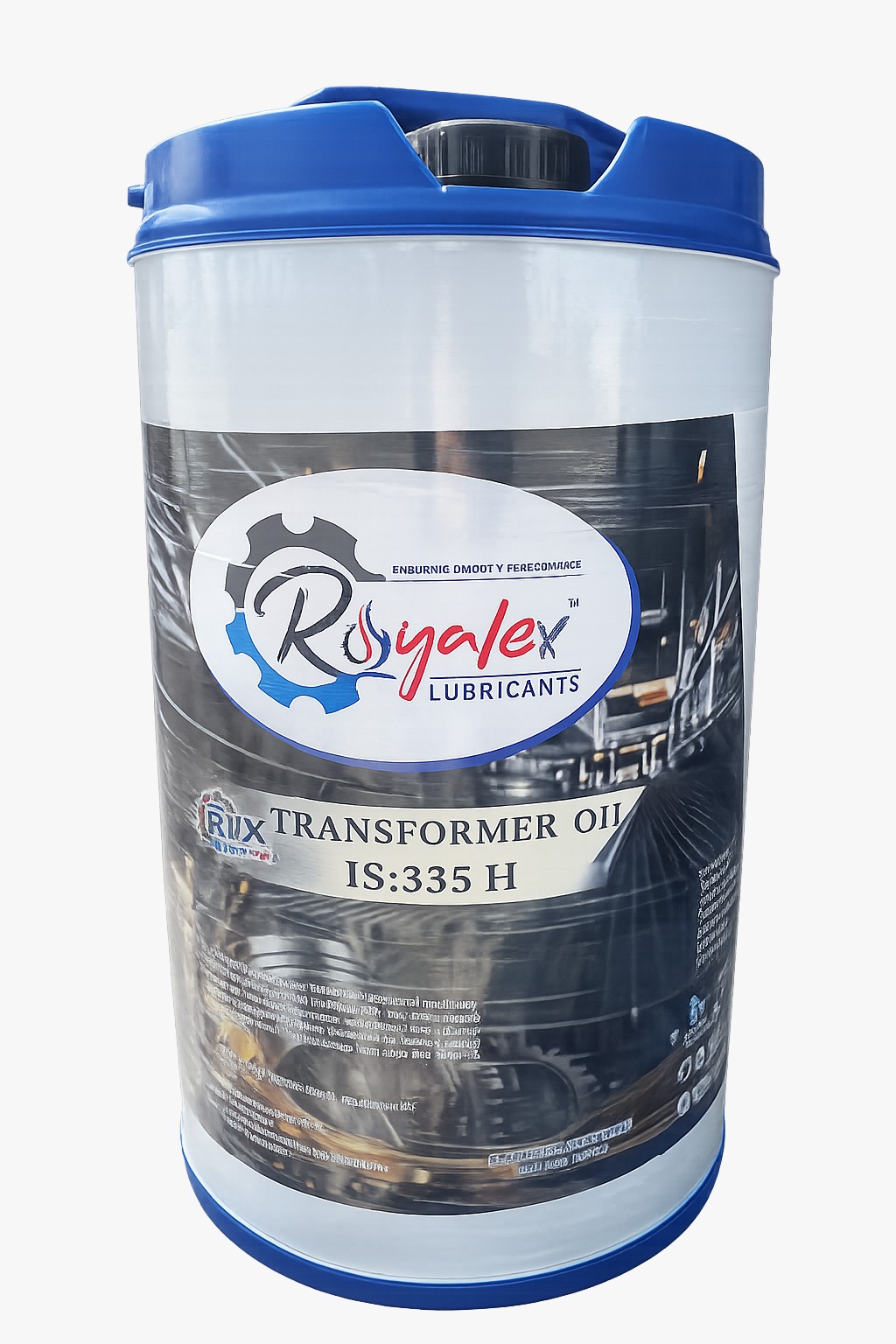

Transformer Oil
Transformer Oil: Essential for Cooling and Insulating Power Transformers
Transformer oil, also known as insulating oil, is a highly refined mineral oil or synthetic oil specifically formulated to serve as both a coolant and an electrical insulator in power transformers, circuit breakers, and other electrical equipment. Its exceptional dielectric properties, thermal stability, and oxidation resistance make it an essential component in ensuring the reliable and safe operation of electrical systems.
Key Functions of Transformer Oil
Electrical Insulation:
Transformer oil provides high dielectric strength, preventing electrical discharges and ensuring safe and efficient operation of transformers and other electrical components.
Cooling Agent:
By dissipating heat generated during transformer operation, the oil helps maintain optimal operating temperatures, preventing overheating and equipment damage.
Moisture Barrier:
Transformer oil acts as a protective barrier against moisture, which can degrade insulation and lead to short circuits or equipment failure.
Suppressing Arc Formation:
In switches and circuit breakers, the oil suppresses arcing by forming a stable insulating medium.
Types of Transformer Oil
Mineral-Based Transformer Oil:
Most widely used, derived from crude oil.
Available as naphthenic or paraffinic oil, depending on its molecular structure.
Synthetic Transformer Oil:
Engineered to meet specific needs, often used in extreme environments.
Examples include silicone-based or ester-based oils.
Biodegradable Transformer Oil:
Made from natural esters (vegetable oils), offering an eco-friendly alternative.
Ideal for installations in environmentally sensitive areas.
Key Properties of Transformer Oil
Dielectric Strength:
High dielectric strength ensures the oil's ability to insulate and withstand high voltage without breaking down.
Thermal Conductivity:
Excellent heat dissipation capability ensures the transformer remains cool during operation.
Oxidation Stability:
Resistance to oxidation prevents sludge formation, maintaining oil efficiency over time.
Viscosity:
Low viscosity allows for efficient circulation and heat transfer, even at low temperatures.
Moisture Resistance:
Transformer oil resists moisture absorption, protecting electrical components from damage.
Chemical Stability:
Stability under high temperatures ensures long service life and reduced maintenance needs.
Applications of Transformer Oil
Power Transformers:
Used as an insulating and cooling medium in power transformers across utility grids and industrial systems.
Distribution Transformers:
Essential for smaller-scale transformers in residential and commercial power distribution.
Circuit Breakers and Switchgear:
Functions as a dielectric medium and arc suppressor in high-voltage electrical switches.
Capacitors:
Used in high-capacity capacitors to enhance insulation and cooling.
Electrical Reactors:
Ensures efficient operation of reactors used in electrical systems to regulate voltage and current.
Advantages of Transformer Oil
Enhanced Electrical Performance:
High-insulating properties minimize energy losses and improve system efficiency.
Thermal Regulation:
Efficient heat dissipation ensures longer equipment life and reliable operation.
Long Service Life:
When properly maintained, transformer oil offers extended operational life, reducing the need for frequent replacements.
Cost-Effective Solution:
Provides a reliable and economical means of insulation and cooling compared to alternatives.
Environmentally Friendly Options:
Biodegradable oils offer sustainable solutions for green energy systems.
Maintenance and Testing of Transformer Oil
To ensure optimal performance and reliability, regular testing and maintenance of transformer oil are essential:
Dielectric Strength Test:
Measures the oil's insulating capacity to handle voltage stress.
Moisture Content Analysis:
Detects the presence of water, which can degrade oil performance.
Acidity Test:
Assesses oil acidity levels to identify potential oxidation or contamination.
Dissolved Gas Analysis (DGA):
Identifies gases formed due to insulation degradation, indicating possible faults in the transformer.
Sludge and Sediment Check:
Evaluates oil cleanliness and the presence of oxidation byproducts.
Periodic Filtering and Reconditioning:
Extends the oil's life by removing impurities and restoring its properties.
Environmental and Safety Considerations
Spill Prevention:
Transformer oil handling must follow strict protocols to prevent environmental contamination.
Fire Safety:
Some transformer oils, particularly mineral oils, are flammable and require careful storage and monitoring.
Biodegradable Options:
The growing use of eco-friendly biodegradable oils reduces environmental impact while maintaining performance.
Conclusion
Transformer oil is a critical component in the efficient and safe operation of electrical systems. Its ability to provide insulation, cooling, and protection against moisture ensures the longevity and reliability of transformers and other high-voltage equipment. With advancements in oil formulations and the growing emphasis on eco-friendly options, transformer oil continues to play a vital role in the evolving energy landscape. Regular maintenance and proper handling are key to optimizing its performance and minimizing environmental impact.
